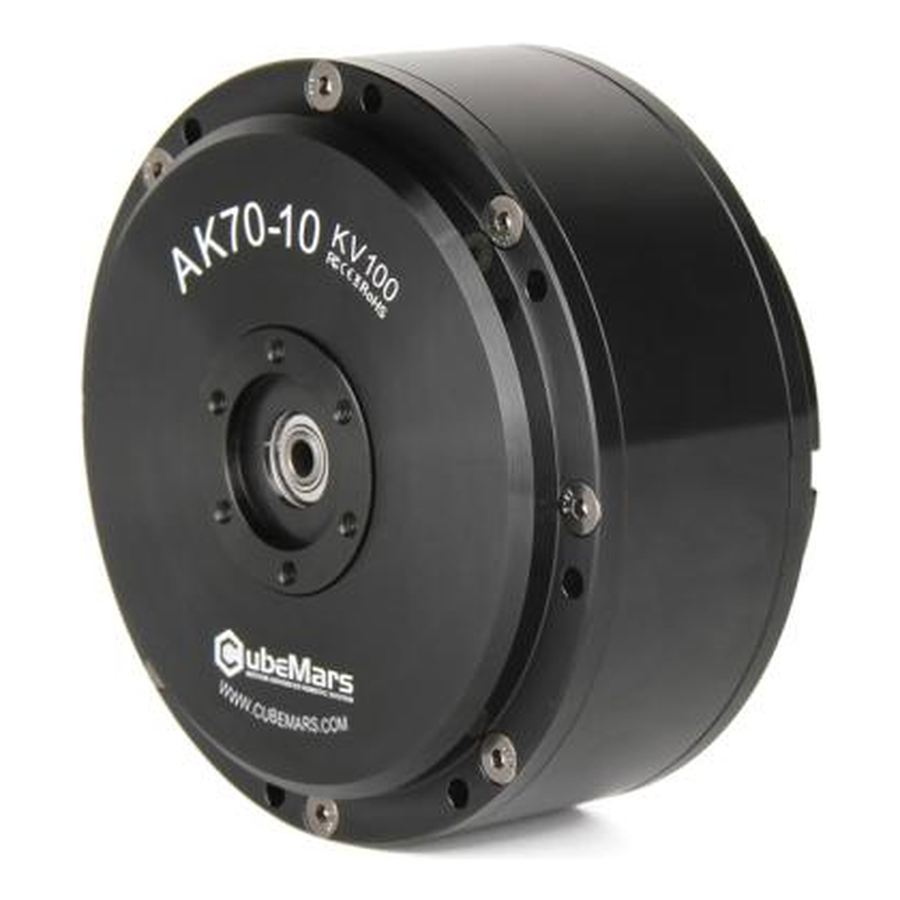

CubeMars AK70-10 Actuator
Contact Sales
Tax and shipping excluded.
24.8 N·m
Peak Torque
10:1 reduction
24 / 48 V
Dual-Voltage
Flexible integration
310 rpm
Rated Speed
Compact joint
Lighter Joints, Same Platform.
A compact sibling to the AK80-9 for smaller joints, with high peak torque and dual-voltage operation.
Compact and Capable
24.8 N·m peak torque with a 10:1 planetary reduction.
Dual-Voltage
Runs on 24 V or 48 V for flexible integration.
Lighter Joints, Same Platform.
A compact sibling to the AK80-9 for smaller joints, with high peak torque and dual-voltage operation.
24.8 N·m
Peak Torque
8.3 N·m
Rated Torque
310 rpm
Rated Speed
10:1
Reduction
24 V / 48 V
Voltage
14-bit
Encoder
CubeMars AK70-10 Actuator Specifications
- Type
- Integrated QDD actuator
- Rated Torque
- 8.3 N·m
- Peak Torque
- 24.8 N·m
- Rated Speed
- 310 rpm
- Reduction
- 10:1
- Voltage
- 24 V / 48 V
- Encoder
- 14-bit magnetic
- Communication
- CAN bus (servo + MIT modes)
