All-terrain mobility
- The Lynx wheel-legged units roll fast on flat ground and step over obstacles up to 80 cm
- The Jueying X30 Pro climbs 45-degree industrial stairs and crosses 20 cm steps
- Both hold 45-degree slopes
BY QUOTE
DEEP Robotics Industrial Quadruped
Contact Sales
Tax and shipping excluded.
2.5–5 hours
Endurance
By edition, unloaded
15–20 kg
Rated Payload
Up to 50 kg max on Lynx
IP66 / IP67
Sealing
−20 °C to 55 °C
Professional & Industrial Quadrupeds

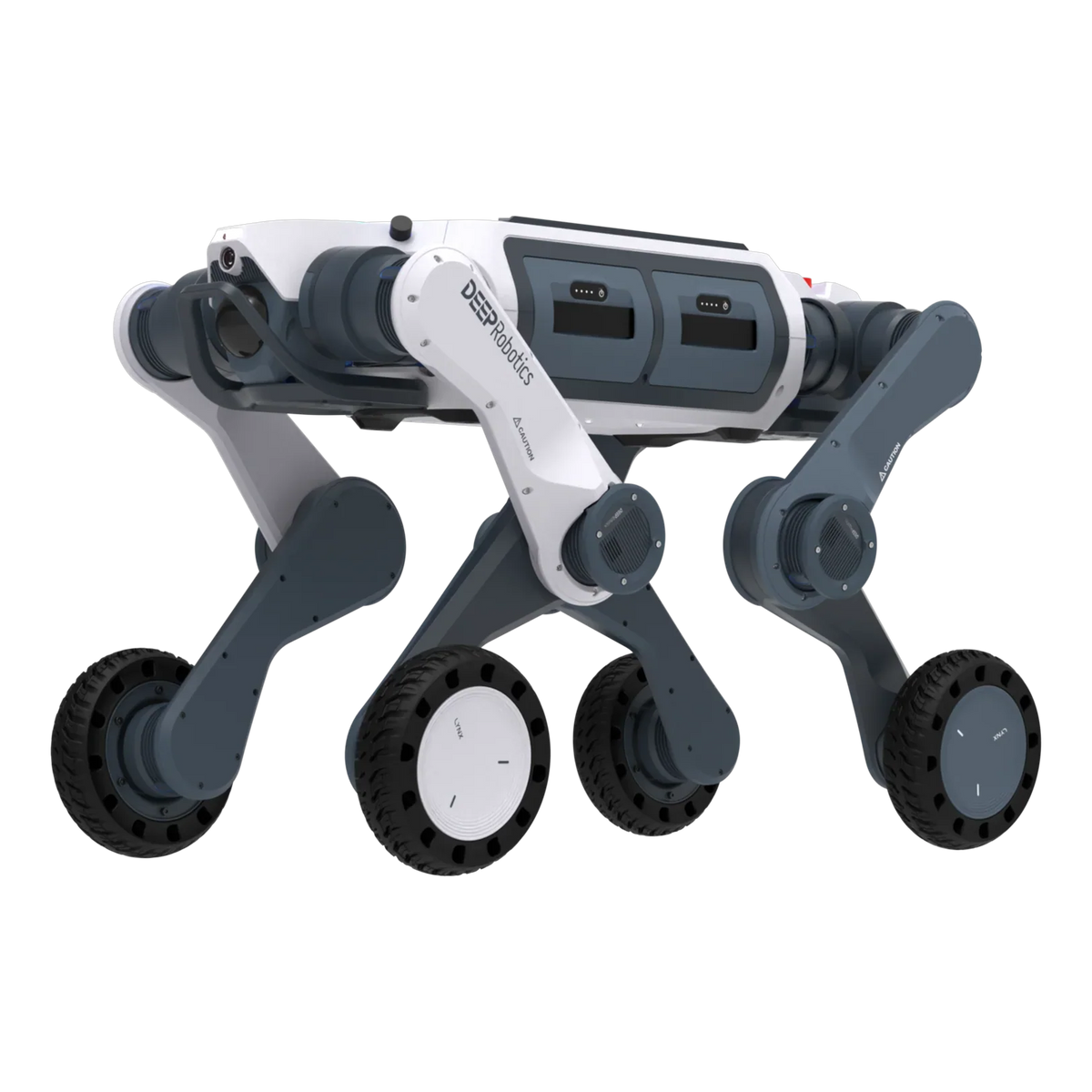

DEEP Robotics builds two quadruped lines: the Lynx wheel-legged series — fast, agile platforms that roll on flat ground and step over obstacles — and the Jueying inspection series, rugged legged robots built for industrial sites in any weather. Both walk where wheels alone can't go.
This is the professional and industrial tier: higher payload, IP66/IP67 sealing and a wide operating-temperature range for demanding outdoor and site work, with autonomous navigation, omnidirectional obstacle avoidance and auto-charging as standard.
What's Included
Quadruped Platform
Wheel-legged or legged, by edition
Autonomy Suite
Navigation, obstacle avoidance, auto-charging
Quick-Change Battery
Dual hot-swap on M20S
Charger
Auto-charging dock compatible
Built to move where people and wheels can't.
A wheel-legged robot rolls fast where the ground is flat and steps up where it isn't. It navigates a site on its own, avoids obstacles in every direction, and returns to charge without a driver.
Dual octa-core
Onboard Compute (Lynx M20 Pro)
Up to 315 N·m
Joint Torque (X30 Pro)
5–9 m/s
Max Speed (Lynx)
80 cm
Max Single Obstacle (Lynx)
33–59 kg
Weight (with Battery)
45°
Max Slope
DEEP Robotics Base Specifications
- Onboard Compute (M20 Pro)
- Dual octa-core 64-bit industrial processors (16 GB + 128 GB)
- Onboard Compute (M20S)
- Upgraded industrial processor
- Perception (Lynx)
- Dual 96-line LiDAR (360° × 90°, ~860,000 pts/s) + dual wide-angle cameras
- Perception (X30 Pro)
- Fusion: LiDAR + depth cameras + infrared/thermal + high-resolution visual (works in darkness)
- IMU
- Built-in
- Autonomy
- Autonomous navigation, auto-charging, omnidirectional obstacle avoidance
- Dimensions (M20 Pro)
- 820 × 430 × 570 mm
- Dimensions (X30 Pro)
- 1000 × 585 × 470 mm
- Weight
- ~33 kg (Lynx) · ~59 kg (X30 Pro)
- Battery
- Quick-change (M20 Pro) · dual hot-swap (M20S) · 72 V quick-swap (X30 Pro)
- Endurance
- 3 h / 15 km unloaded (M20 Pro) · 3.5–5 h (M20S) · 2.5–4 h, 10 km+ (X30 Pro)
- Charging Time
- ~1.5 hours (M20 Pro)
- Max Speed
- 5 m/s (M20 Pro, safe 2 m/s) · 9 m/s (M20S) · ≥4 m/s (X30 Pro)
- Rated Payload
- 15 kg, max 50 kg (Lynx) · ≥20 kg (X30 Pro)
- Max Single Obstacle
- 80 cm (Lynx) · ≥20 cm step (X30 Pro)
- Max Continuous Stair Height
- 25 cm (M20 Pro)
- Max Slope
- 45°
- Joint Actuators
- J100 series, peak torque up to 315 N·m (X30 Pro)
- Locomotion (Lynx)
- Wheel-legged hybrid (step or roll)
- Locomotion (Jueying)
- Legged, climbs up and down 45° stairs
- Connectivity (X30 Pro)
- Built-in RTK · USB 2.0/3.0 · Ethernet · WiFi
- Power Outputs (X30 Pro)
- 5 V / 12 V / 24 V + industrial navigation interface
- IP Rating
- IP66 (Lynx) · IP67 (Jueying)
- Operating Temperature
- −20 °C to 55 °C
- Night Operation
- Thermal fusion perception (X30 Pro)
- Additional Batteries
- Compatible (quick-change / hot-swap)
- Auto-Charging Dock
- Supported
Key capabilities
Built to move where people and wheels can't
All-terrain mobility, driverless site operation, and industrial sealing — these units work outdoors, in the dark, and through a full shift.
Autonomous operation
- Autonomous navigation, omnidirectional obstacle avoidance, and auto-charging
- Patrol and inspect a site without a driver
Industrial durability & endurance
- IP66 (Lynx) and IP67 (Jueying) sealing, −20 °C to 55 °C; X30 Pro thermal fusion sees in complete darkness
- Rated payloads of 15 to 20 kg, multi-hour runtimes
- Hot-swap and quick-swap batteries for continuous site work
— COMPARE EDITIONS
Lynx M20 Pro vs Lynx M20S vs Jueying X30 Pro
Two platforms, three configurations. The Lynx units are wheel-legged and fast; the Jueying X30 Pro is a heavier legged inspection robot with IP67 sealing and thermal fusion perception.
WHEEL-LEGGED

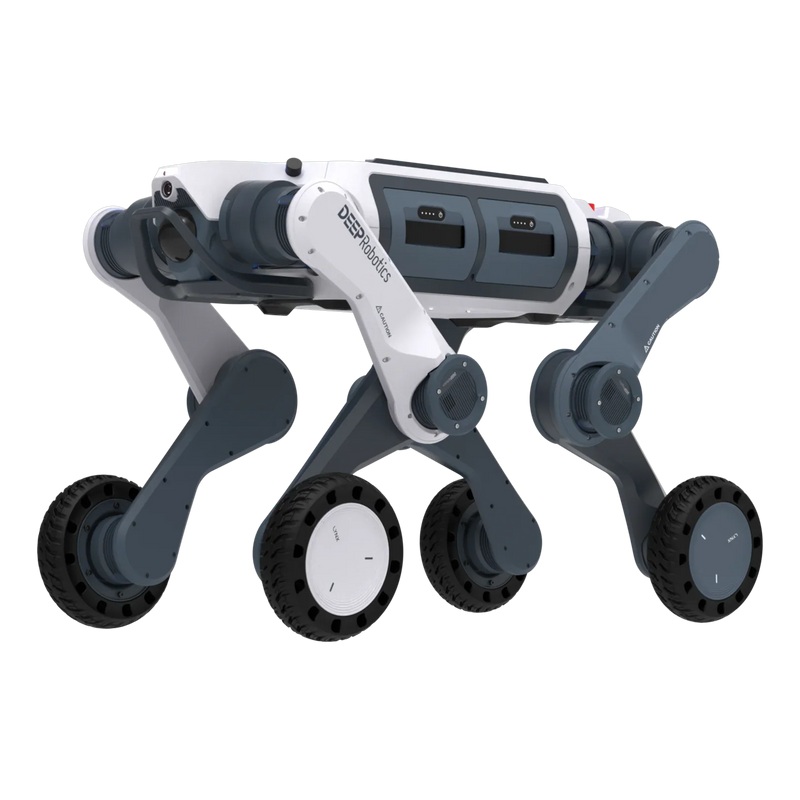

Lynx M20 Pro
Wheel-legged quadruped with autonomous navigation
Contact Sales
- 5 m/s · 15 kg payload · 80 cm obstacle clearance
- Dual 96-line LiDAR · navigation + auto-charging
- IP66 · −20 °C to 55 °C
- The agile all-terrain workhorse
FASTEST
Lynx M20S
High-speed wheel-legged with dual-battery hot-swap
Contact Sales
- 9 m/s top speed
- 3.5–5 h unloaded endurance
- Dual-battery hot-swap, no cooldown
- IP66 · Lynx M20 chassis
INDUSTRIAL

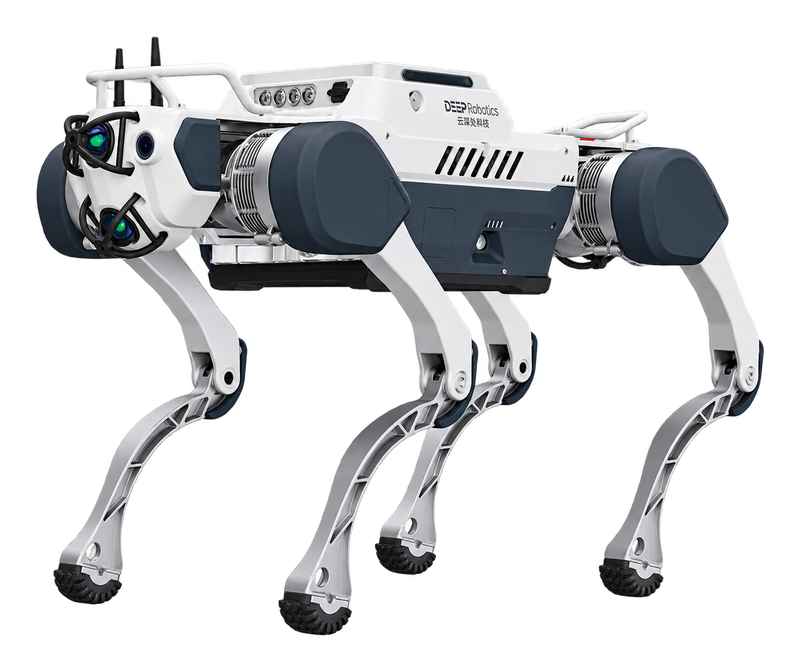

Jueying X30 Pro
Industrial inspection quadruped, IP67 and all-weather
Contact Sales
- 20 kg+ payload · climbs 45° industrial stairs
- Fusion perception: LiDAR + depth + thermal imaging
- Built-in RTK + expanded I/O
- IP67 · J100 actuators up to 315 N·m
Showing 13 specifications — 10 differ between editions
Swipe to see all 3 models
Specification
Lynx M20 Pro
WHEEL-LEGGED
Lynx M20S
FASTEST
Jueying X30 Pro
INDUSTRIAL
Lynx M20 ProWHEEL-LEGGED
Lynx M20SFASTEST
Jueying X30 ProINDUSTRIAL
Price
Quote
Quote
Quote
Locomotion
Wheel-legged
Wheel-legged
Legged DIFF
Max Speed
5 m/s
9 m/s DIFF
4 m/s or more DIFF
Rated Payload
15 kg
15 kg (M20 platform) DIFF
20 kg or more DIFF
Max Obstacle / Step
80 cm
80 cm (M20 platform) DIFF
20 cm or more DIFF
Max Slope
45°
45°
45°
Weight
Approx. 33 kg
Approx. 33 kg (M20) DIFF
Approx. 59 kg DIFF
Dimensions (Standing)
820 x 430 x 570 mm
Lynx M20 platform DIFF
1000 x 585 x 470 mm DIFF
Endurance (unloaded)
3 h / 15 km
3.5 to 5 h DIFF
2.5 to 4 h DIFF
Perception
Dual 96-line LiDAR
Integrated LiDAR DIFF
Fusion (LiDAR + thermal) DIFF
IP Rating
IP66
IP66
IP67 DIFF
Operating Temp
-20°C to 55°C
-20°C to 55°C
-20°C to 55°C
Battery
Quick-change
Dual hot-swap DIFF
72 V quick-swap DIFF
